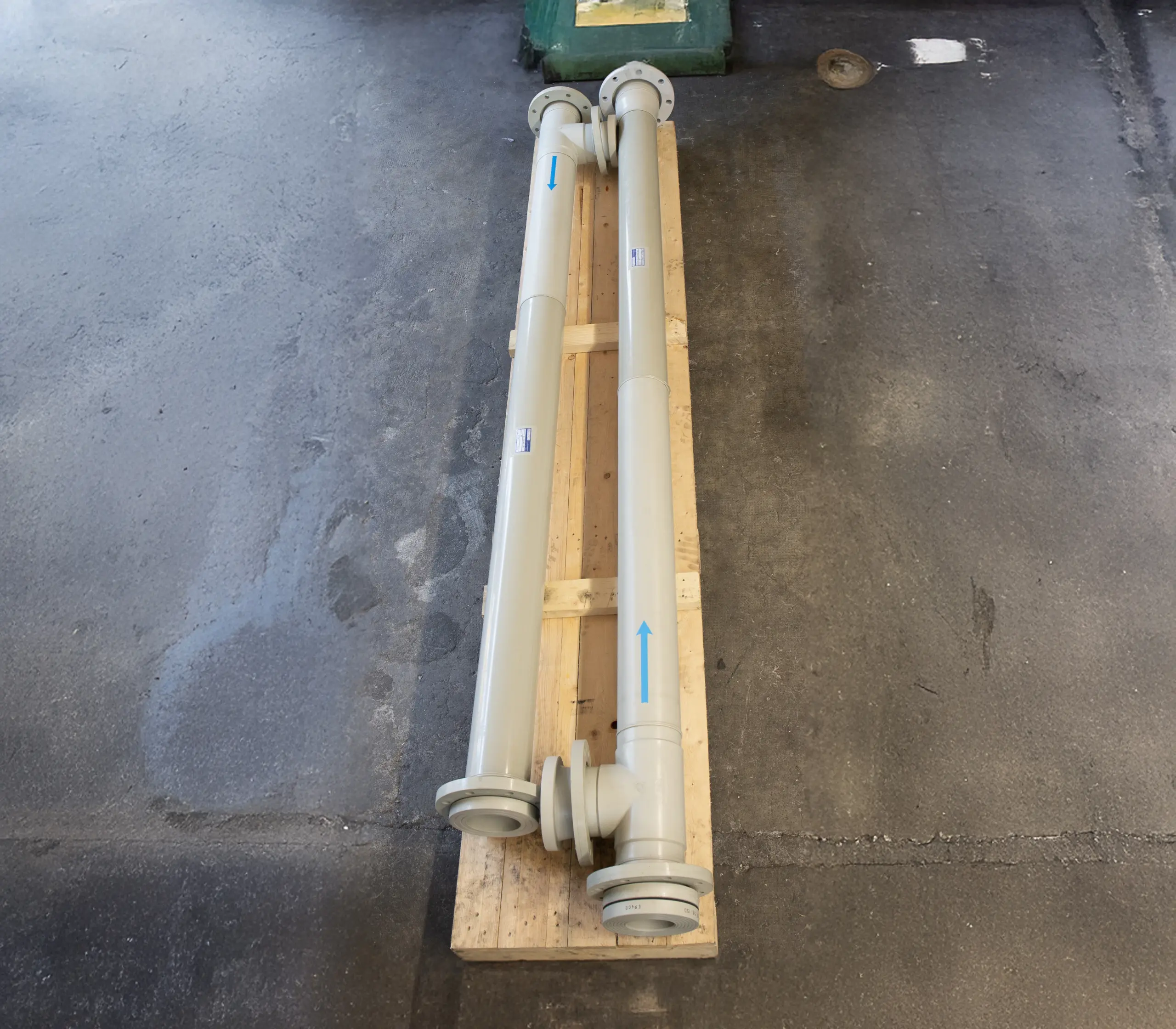

Liquid jet fan ejectors are used to aspirate and convey large volumes of air, gas or steam.
Designed to operate by aspirating gas flows with small pressure differences, they are suitable for compression values between 1 and 20 mbar.
The vacuum is generated by the kinetic energy of the motive liquid which, passing through a specially sized spiral nozzle, creates a depression of a few mbar in the suction chamber.
The gas is accelerated by the exchange of momentum with the motive liquid and the mixture sent to a separation tank located downstream of the ejector.
The installation is vertical with flow from top to bottom.
Ideal for transporting gases without the aid of mechanical fans or blowers and for use in ATEX environments.
